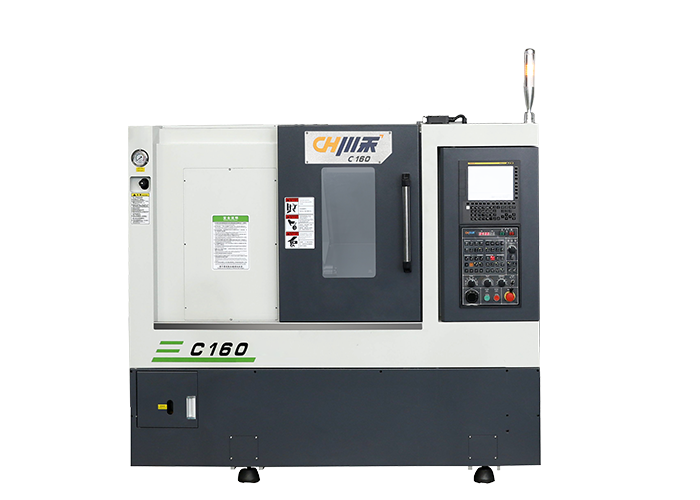

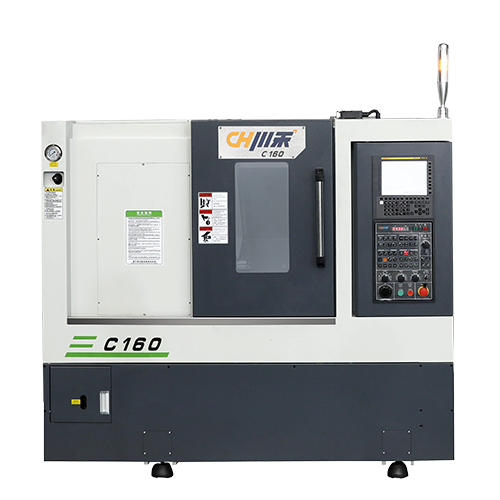

C160Turret CNC lathe
Made of high-grade Meehanite cast iron, internal stress is removed through artificial aging (heat treatment) and natural aging, providing better rigidity, stability and accuracy retention.
- Products
products
Processing range
MoreMaximum spin diameter on the saddleΦ320mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ120mm
Rotation diameter on carriageΦ126mm
Maximum turning length300mm
Chuck size5'
Bar capacityΦ36mm
Processing range
MoreMaximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ126mm
Maximum turning length340mm
Chuck size6'
Bar capacityΦ46mm
Processing range
MoreMaximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ126mm
Maximum turning length320mm
Chuck size8'
Bar capacityΦ52mm
SpecificationC200-300
C200-500
Processing range
MoreMaximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size8'
Bar capacityΦ52mm
Processing range
MoreMaximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ400mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length488mm
Chuck size8'
Bar capacityΦ52mm
SpecificationC250-500
C250-1000
Processing range
MoreMaximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ400mm
Standard turning diameterΦ250mm
Rotation diameter on carriageΦ300mm
Maximum turning length488mm
Chuck size5'
Bar capacityΦ52mm
Processing range
MoreMaximum spin diameter on the saddleΦ580mm
Maximum turning diameterΦ500mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ1000mm
Maximum turning length500mm
Chuck size10'
Bar capacityΦ72mm
SpecificationC300-1000
C300-1500
C300-2000
Processing range
MoreMaximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ620mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length1000mm
Chuck size12'
Bar capacityΦ75mm
Processing range
MoreMaximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ620mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length1500mm
Chuck size12'
Bar capacityΦ75mm
Processing range
MoreMaximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ640mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length2240mm
Chuck size12'
Bar capacityΦ75mm
Specification
Processing range
MoreMaximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ46mm
Processing range
MoreMaximum spin diameter on the saddleΦ480mm
Maximum turning diameterΦ200mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ250mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ46mm
Processing range
MoreMaximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ52mm
Processing range
MoreMaximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ225mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ300mm
Maximum turning length240mm
Chuck size6'
Bar capacityΦ42mm
Processing range
MoreMaximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size8'
Bar capacityΦ52mm
Processing range
MoreMaximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ330mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length450mm
Chuck size8'
Bar capacityΦ52mm
Processing range
MoreSpindle through apertureΦ66mm
Spindle bearing diameterNN3020+100BAR+NN3018
Hydraulic cylinder bore8'
Spindle noseA 2-6
Spindle motor power22kW
Spindle transmission modeDirect drive
Spindle transmission ratio1：1
Spindle speed4300rpm
Spindle rated output speed2320rpm(220V)
Processing range
MoreSpindle through apertureΦ66mm
Spindle bearing diameterNN3020+100BAR+NN3018
Hydraulic cylinder bore8'
Spindle noseA 2-6
Spindle motor power22kW
Spindle transmission modeDirect drive
Spindle transmission ratio1:1
Spindle speed4300rpm
Spindle rated output speed2320rpm(220V)
ModelG818A
G818S
G2550A
G2550S
G306K
G306S
G408K
G408S
Processing range
MoreTable working area460X200mm
Maximum left and right movement540mm
Maximum forward and backward movement250mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench150kg
Workbench T-slot14mm×1N
Workbench speed5～25m/min
Processing range
MoreTable working area460X200mm
Maximum left and right movement540mm
Maximum forward and backward movement240mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench150kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min
Processing range
MoreTable working area500X250mm
Maximum left and right movement560mm
Maximum forward and backward movement275mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench250kg
Workbench T-slot14mm×1N
Workbench speed5～25m/min
Processing range
MoreTable working area500X250mm
Maximum left and right movement560mm
Maximum forward and backward movement275mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench250kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min
Processing range
MoreTable working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center570mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min
Processing range
MoreTable working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center570mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min
Processing range
MoreTable working area800×400mm
Maximum left and right movement880mm
Maximum forward and backward movement450mm
Maximum distance from work surface to spindle center580mm
Maximum weight of the workbench700kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min
Processing range
MoreTable working area800×400mm
Maximum left and right movement880mm
Maximum forward and backward movement450mm
Maximum distance from work surface to spindle center580mm
Maximum weight of the workbench700kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min
ModelG5010S
G5012S
G6015S
G6030S
G7020S
Processing range
MoreTable working area1000X500mm
Maximum left and right movement1140mm
Maximum forward and backward movement540mm
Maximum distance from work surface to spindle center600mm
Maximum weight of the workbench800kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min
Processing range
MoreTable working area1200X500mm
Maximum left and right movement1340mm
Maximum forward and backward movement540mm
Maximum distance from work surface to spindle center600mm
Maximum weight of the workbench800kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min
Processing range
MoreTable working area1500×600mm
Maximum left and right movement1600mm
Maximum forward and backward movement660mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench800kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min
Processing range
MoreTable working area3000×600mm
Maximum left and right movement3250mm
Maximum forward and backward movement660mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench1500kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min
Processing range
MoreTable working area2000×700mm
Maximum left and right movement2230mm
Maximum forward and backward movement760mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench1500kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min
